How to Press Inklingo Castle Wall Blocks – 2

press castle wall quilt block

I think the pressing shows most clearly in the illustrations below, but isn’t this Castle Wall block pretty from the back?

Russ says it’s almost pretty enough to be the front!

We press Castle Wall the same way we press Hexagons or Pieced Hexagons or Lucy Boston Patchwork of the Crosses as shown in my last post, but there is one final twist at the end, okay?

It is a beautiful technique and I think that you will want to use it whenever you hand piece. It’s not just for castles!

.How to press Inklingo Castle Wall


Focus on one intersection at a time.

You can start anywhere, but just focus on one at a time.

Press the seams clockwise around the first intersection. The seam allowances open and lie flat. Touch with the point of a hot, dry iron.

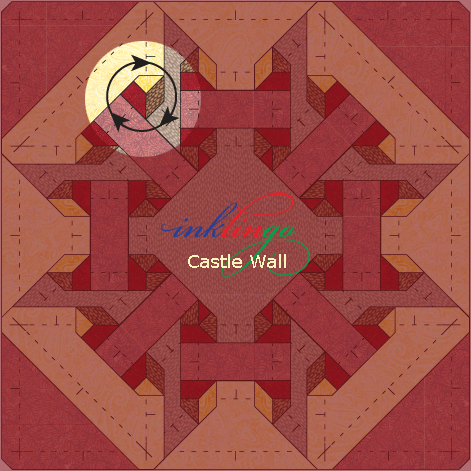

Inklingo Castle Wall pressing

You may have seen the same method used in 4 patches. When you press the seam allowances to the side around the intersection it distributes the bulk and makes the intersection look better from the front.

Since we only sew from crosshair to crosshair when we hand piece, the seam allowances open perfectly and lie flat. (This method also works for machine piecing, but it is necessary to loosen a few stitches.)

We love pressing this way! It looks better from the front and is easier to quilt.

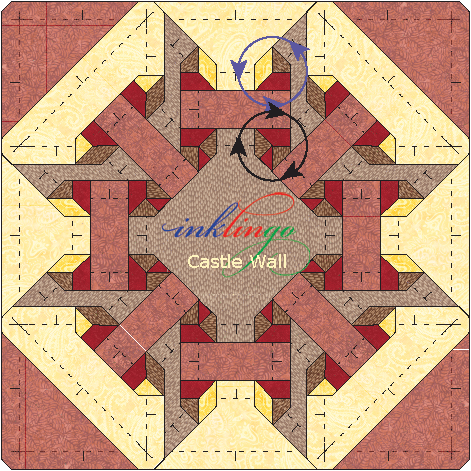

Inklingo Castle Wall Pressing -2


Move to an adjacent intersection (purple arrows).

Press the seam allowances to the side around it in the opposite (counterclockwise) direction.

The first one goes clockwise (black) and the second one goes counterclockwise (purple).

NOTE  An “adjacent” intersection is not just a nearby intersection. It must share a seam allowance with the intersection you have just opened. The direction the shared seam allowance is pressed determines the direction you will go around the next intersection.

If you always move from one intersection to an adjacent intersection, the whole Castle Wall block works out perfectly, as shown.

It takes less time to do it than it does to explain it!

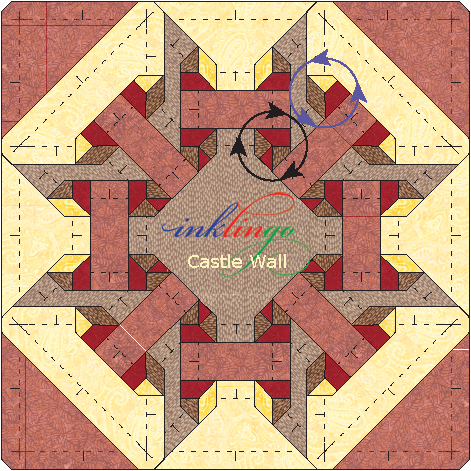

Inklingo Castle Wall Pressing -3


Then move to any adjacent intersection (two choices in this case).

Press clockwise (black arrows). It is easy because one seam allowance is already pressed.

Keep alternating clockwise and counterclockwise, always focusing on one intersection at a time.

Inklingo Castle Wall Pressing -4


Notice seam allowances on adjacent intersections

Notice that when the intersection is pressed clockwise (black arrows), the seam connecting to the adjoining intersection is already pressed, so that the rest of the seams around the adjoining intersection will be counterclockwise (purple).

After a few intersections, you will be fast at twirling the seam allowances ahead of the point of the iron.

Try it! I think you will be surprised by how quickly it happens.

Inklingo Castle Wall Pressing -5


Tilt the iron to use the point on each intersection.

Press just enough to hold things in position until you are ready to flip it over and finish pressing on the front.

Inklingo Castle Wall Pressing -6


Keep going all the way around.

Always move to an adjacent intersection, not hopping around randomly.

How to press Inklingo Castle Wall

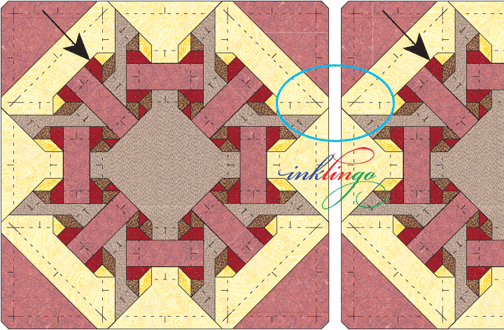

Press all blocks identically?

If you press all of the blocks identically (black arrows), when you set the blocks against each other (without sashing or other alternating blocks), the seam allowances will not nest (circled).

This is not the end of the world, but there are two simple ways to make these seams nest. It makes assembling the quilt top easier and reduces the bulk so it is easier to quilt.

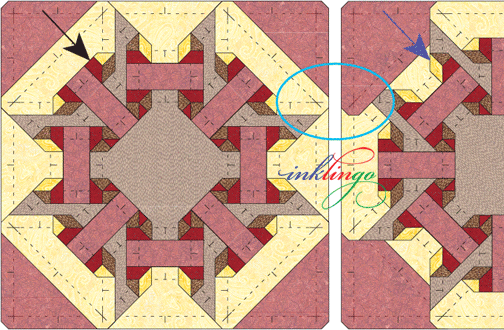

How to press Inklingo Castle Wall



There are two ways to ensure that the seam allowances nest (pressed in opposite directions) when you assemble the quilt top, as shown above.

1. Press blocks which will be next to each other (adjoining) to be opposites (purple arrow).

OR (my favorite)

2. Press all of the blocks identically, but without the corners!

Wait until you are ready to assemble the quilt top to add the corner triangles (HST). This is the preferred sewing sequence I described in an earlier post.

When you add the corners, all you have to do is turn some of the blocks 45º to make them opposites! Easy peasy.

I love this second method because it is faster and gives me better results.

  • I can chain piece the HST to the corners by machine. There is no advantage to hand piecing them.
  • I can decide at that last minute which blocks will be next to each other.
  • All of the seam allowances nest perfectly to make assembling the quilt top easier and more precise.

How often is faster also better? I love it that Inklingo makes it happen!

Inklingo Castle Wall

MONKEY’S BONUS TIP If you have already pressed several blocks identically and wish you had done some of them in the opposite direction, you might find it easier to move the corner triangles than to re-press the block.

Inklingo Castle Wall

Finish pressing from the front.

This method ensures the block looks perfect and lies flat.

As usual, we use a hot, dry iron when pressing quilt blocks. No steam!

The Inklingo Handbook

There is a whole chapter on pressing and trimming in The Inklingo Handbook. If you buy it first, you can use the $10 coupon code to buy Castle Wall shapes to print on fabric.

All Inklingo Design Books include detailed pressing instructions like this too.

Inklingo Print Checklist

New to Inklingo? Start free!

Free Diamond Triangles Square Shape Collection

Please start with the Guided Tour and the FREE Diamond Triangle Square shape collection. It includes the first chapter of The Inklingo Handbook. That and the Top Ten Tutes on this blog will give you a great start.

Inklingo Castle Wall 4.5 inch   . . . Inklingo Castle Wall 6 inch . . . Inklingo Castle Wall 9 inch

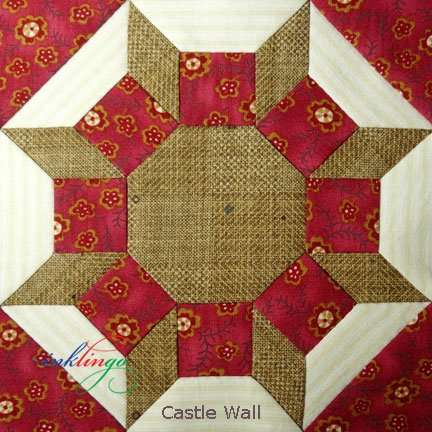

How to press Inklingo Castle Wall

I will add the rest of the trapezoids to this Castle Wall block before I press. I do not add the corner triangles until I am ready to assemble the quilt top.


Please subscribe (top of right sidebar) so you don’t miss our best tips for the new Inklingo Castle Wall shape collections.

Inklingo on Facebook

Please like Inklingo on Facebook, and if you know any other quilters who might be interested in this pressing technique please pass it along.

Until next time, you can catch up on our earlier posts about sewing sequence, settings for Castle Wall Quilts, a free Electric Quilt project file, and Cathi’s tutorial.

I hope you will try pressing this way! Thank you for visiting.

Linda & Monkey
